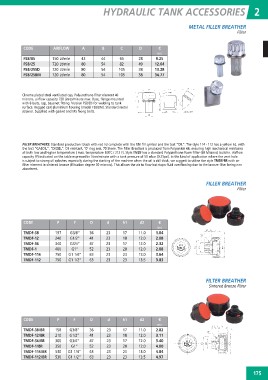

Page 181 - floMAX Catalogue 2016

HYDRAULIC TANK ACCESSORIES 2

METAL FILLER BREATHER

Filter

CODE AIRFLOW A B C D €

N16

FSB/05 150 Lt/min 43 44 65 28 9.25

FSB/25 720 Lt/min 80 54 82 49 12.64

FSB/25SD 720 Lt/min 80 54 105 38 13.28

FSB/25BM 720 Lt/min 80 54 105 38 34.77

Chrome plated steel ventilated cap, Polyurethane filter element 40
microns, airflow capacity 720 Litres/minute max. Base, flange mounted
with 6 bolts, cap, bayonet fitting. Version FSB/SD for welding to tank
surface. Rugged cast aluminium housing (model FSB/BM). Standard metal
strainer. Supplied with gasket and M5 fixing bolts.

FILLER BREATHERS: Standard production: black with red lid complete with the UNI fill symbol and the text “OIL”. The style 114 - 112 has a yellow lid, with
the text “GASOIL”, “DIESEL”. Oil resistant, ‘O’ ring seal, 70 Shore. The Filler Breather is produced from Polyamide 66, ensuring high mechanical resistance
at both low and higher temperature ( max. temperature 100˚C / 212 F). Style TMDF has a standard Polyurethane foam filter (50 Microns) build-in. Airflow
capacity (P) indicated on the table expressed in litres/minute with a tank pressure of 50 mbar (0.73psi). In the kind of application where the vent hole
is subject to strong oil splashes, especially during the starting of the machine when the oil is still thick, we suggest to utilise the style TMDF/BR with air
filter element in sintered bronze (filtration degree 30 microns). This allows the air to flow but stops fluid overflowing due to the bronze filter being non
absorbent.

FILLER BREATHER

Filter

CODE P F D d h1 d2 €

N16

TMDF-38 197 G3/8” 36 23 17 11.0 1.84

TMDF-12 240 G1/2” 41 23 18 12.0 2.08

TMDF-34 340 G3/4” 47 23 17 12.0 2.32

TMDF-1 400 G1” 52 23 20 12.0 2.88

TMDF-114 750 G1 1/4” 63 23 23 13.0 3.64

TMDF-112 750 G1 1/2” 63 23 23 13.5 3.83

FILTER BREATHER

Sintered Bronze Filter

CODE P F D d h1 d2 €

N16

TMDF-38/BR 158 G3/8” 36 23 17 11.0 2.82

TMDF-12/BR 210 G1/2” 41 23 18 12.0 3.11

TMDF-34/BR 300 G3/4” 47 23 17 12.0 3.40

TMDF-1/BR 350 G1” 52 23 20 12.0 4.00

TMDF-114/BR 530 G1 1/4” 63 23 23 13.0 4.84

TMDF-112/BR 530 G1 1/2” 63 23 23 13.5 4.97

175
