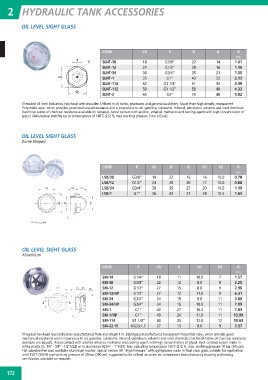

2 HYDRAULIC TANK ACCESSORIES

OIL LEVEL SIGHT GLASS

CODE Ch F D d €

N16

SLNT-38 18 G3/8” 22 14 1.01

SLNT-12 24 G1/2” 28 16 1.14

SLNT-34 30 G3/4” 35 21 1.55

SLNT-1 35 G1” 43 32 2.13

SLNT-114 42 G1 1/4” 51 33 3.39

SLNT-112 50 G1 1/2” 58 40 4.33

SLNT-2 64 G2” 74 48 5.82

Threaded oil level indicators, hex head with shoulder. Utilised in oil tanks, gearboxes and general machinery. Made from high density, transparent
Polyamide resin, which provides good mechanical resistance and is impervious to oil, gasoline, lubricants, mineral, petroleum, solvents and most chemicals
(technical tables of chemical resistance available on request). Avoid contact with alcohol, ethanol, methanol and cooling agent with high concentration of
glycol. Dimensional stability up to temperatures of 100˚C (212 F), max working pressure 3 bar (43 psi).

OIL LEVEL SIGHT GLASS

Dome Shaped

CODE F Ch D d h1 h2 €

N16

LSB/38 G3/8” 19 22 15 16 10.0 0.78

LSB/12 G1/2” 24 28 20 17 10.0 0.88

LSB/34 G3/4” 30 35 25 20 10.0 1.19

LSB/1 G1” 36 42 31 24 10.5 1.63

OIL LEVEL SIGHT GLASS

Aluminium

CODE F Ch d h1 H2 €

N16

SM-14 G1/4” 18 11 10.0 7 1.57

SM-38 G3/8” 22 12 8.0 9 2.25

SM-12 G1/2” 27 15 8.0 9 2.96

SM-12/HP G1/2” 27 12 11.0 9 6.31

SM-34 G3/4” 34 19 9.0 11 3.89

SM-34/HP G3/4” 34 16 10.0 11 7.99

SM-1 G1” 40 27 10.5 11 7.83

SM-1/HP G1” 40 24 11.0 11 13.99

SM-114 G1 1/4” 50 35 12.0 12 10.63

SM-22.15 M22x1.5 27 15 8.0 9 3.37

Threaded hex-head level indicators manufactured from aluminium 115. Slightglass manufactured transparent Polyamide resin, which provide good
mechanical resistance and is impervious to oil, gasoline, lubricants, mineral, petroleum, solvents and most chemicals ( technical tables of chemical resistance
available on request). Avoid contact with alcohol, ethanol, methanol and cooling agent with high concentration of glycol. Back contrast screen made in
white plastic (G. 1/4” - 3/8” - 1/2”M22) or in aluminium (G3/4” - 1”M33). Max operating temperature 100˚C (212 F), max. working pressure 10 bar (145 psi).
Flat asbestos-free seal, available aluminium washer. Special version HP “High Pressure” with sightglasses made in float clear glass, suitable for application
until 150˚C (302 F) and working pressure of 20 bar (290 psi), suggested to be utilised on screw air compressors (manufacturing drawing and testing
certification available on request).
