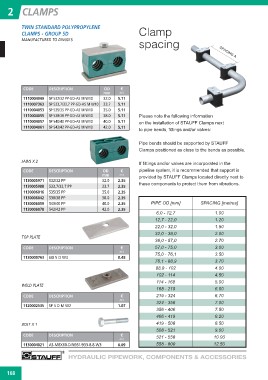

Page 174 - floMAX Catalogue 2016

2 CLAMPS Clamp
spacing
TWIN STANDARD POLYPROPYLENE
CLAMPS - GROUP 5D

MANUFACTURED TO DIN3015

SPACING A

CODE DESCRIPTION OD € Please note the following information
mm on the installation of STAUFF Clamps next
1110004049 SP 532/32 PP-GD-AS M W10 32.0 A10 to pipe bends, fittings and/or valves:
1110007363 SP 533,7/33,7 PP-GD-AS M W10 33.7
1110004053 SP 535/35 PP-GD-AS M W10 35.0 5.11
1110004055 SP 538/38 PP-GD-AS M W10 38.0 5.11
1110004057 SP 540/40 PP-GD-AS M W10 40.0 5.11
1110004061 SP 542/42 PP-GD-AS M W10 42.0 5.11
5.11
5.11

JAWS X 2 Pipe bends should be supported by STAUFF
Clamps positioned as close to the bends as possible.
CODE DESCRIPTION OD €
mm If fittings and/or valves are incorporated in the
A10 pipeline system, it is recommended that support is
provided by STAUFF Clamps located directly next to
1130005971 532/32 PP 32.0 2.35 these components to protect them from vibrations.
1130005988 533,7/33,7 PP
1130006016 535/35 PP 33.7 2.35
1130006042 538/38 PP
1130006059 540/40 PP 35.0 2.35
1130006078 542/42 PP
38.0 2.35 PIPE OD [mm] SPACING [metres]

40.0 2.35 6,0 - 12,7 1.00
12,7 - 22,0 1.20
42.0 2.35 22,0 - 32,0 1.50
32,0 - 38,0 2.00
TOP PLATE 38,0 - 57,0 2.70
57,0 - 75,0 3.00
CODE DESCRIPTION € 75,0 - 76,1 3.50
76,1 - 88,9 3.70
1130000763 GD 5 D W3 A10 88,9 - 102 4.00
102 - 114 4.50
0.45 114 - 168 5.00
168 - 219 6.00
WELD PLATE 219 - 324 6.70
324 - 356 7.00
CODE DESCRIPTION € 356 - 406 7.50
406 - 419 8.20
1120002535 SP 5 D M W2 A10 419 - 508 8.50
508 - 521 9.00
BOLT X 1 1.07 521 - 558 10.00
558 - 800 12.50
CODE DESCRIPTION €

1130004021 AS-M8X60-DIN931/933-8.8-W3 A10

0.09

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES

168
