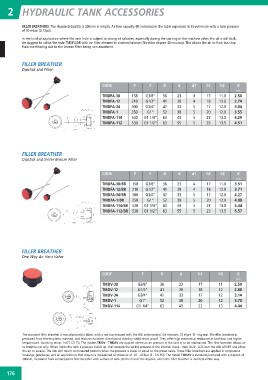

2 HYDRAULIC TANK ACCESSORIES

FILLER BREATHERS: The standard dipstick is 200mm in length. Airflow capacity (P) indicated in the table expressed in litres/minute with a tank pressure
of 50 mbar (0.73psi).
In the kind of application where the vent hole is subject to strong oil splashes, especially during the starting of the machine when the oil is still thick,
we suggest to utilise the style TMDFA/BR with air filter element in sintered bronze (filtration degree 30 microns). This allows the air to flow but stop
fluid overflowing due to the bronze filter being non absorbent.

FILLER BREATHER

Dipstick and Filter

CODE P F D d d1 h1 h2 €

N16

TMDFA-38 158 G3/8” 36 23 4 17 11.0 2.50

TMDFA-12 210 G1/2” 41 28 4 18 12.0 2.74

TMDFA-34 300 G3/4” 47 33 5 17 12.0 3.04

TMDFA-1 350 G1” 52 38 5 20 12.0 3.55

TMDFA-114 530 G1 1/4” 63 49 5 23 13.0 4.29

TMDFA-112 530 G1 1/2” 63 55 5 23 13.5 4.51

FILLER BREATHER

Dipstick and Sinter Bronze Filter

CODE P F D d d1 h1 h2 €

N16

TMDFA-38/BR 158 G3/8” 36 23 4 17 11.0 3.51

TMDFA-12/BR 210 G1/2” 41 28 4 18 12.0 3.71

TMDFA-34/BR 300 G3/4” 47 33 5 17 12.0 4.27

TMDFA-1/BR 350 G1” 52 38 5 20 12.0 4.88

TMDFA-114/BR 530 G1 1/4” 63 49 5 23 13.0 5.44

TMDFA-112/BR 530 G1 1/2” 63 55 5 23 13.5 5.57

FILLER BREATHER

One Way Air Vent Valve

CODE F D d h1 h3 €

N16

TMDV-38 G3/8” 36 23 17 11 2.59

TMDV-12 G1/2” 41 28 18 12 2.88

TMDV-34 G3/4” 47 33 17 12 3.14

TMDV-1 G1” 52 38 20 12 3.70

TMDV-114 G1 1/4” 63 49 23 13 4.44

The standard filler breather is manufactured in black, with a red top encased with the UNI valve symbol. Oil resistant, 70 shore ‘O’ ring seal. The filler breather is
produced from thermoplastic material, and features excellent dimensional stability whilst shock proof. They offer high mechanical resistance at both low and higher
temperature. (working temp.: 100˚C (21 F)). The models TMDV - TMDAV are applied where an air pressure in the tank is to be maintained. The filler breather allows air
to breathe out only. When inside the tank a pressure builds up, that exceeds the spring pressure of the internal check - desk (0.20 - 0.25 bar) the disk will lift and allow
the air to escape. The disk will return to its seated position when the pressure is lower or equal to the preset valve. These filler breathers are applied in compressor
housings, gearboxes, and all applications that require a maintained air pressure of .20 - .25 bar (3 - 3.6 PSI). The model TMDAV is standard produced with a dipstick of
200mm, measured from contact point filler breather with surface of tank, to the end of the dipstick, when the filler breather is inserted all the way.
