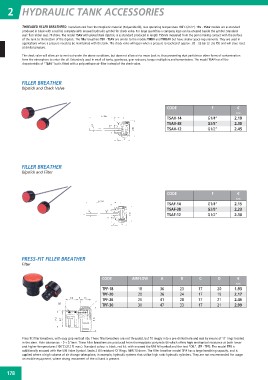

2 HYDRAULIC TANK ACCESSORIES

THREADED FILLER BREATHERS:: manufactured from thermoplastic material (Polyamide 66), max operating temperature 100˚C (212 F). TSV - TSAV models are as standard
produced in black with a red lid, complete with encased hydraulic symbol for check valve. For large quantities a company logo can be encased beside the symbol. Standard
seal: flat rubber seal, 70 shore. The model TSAV with plated steel dipstick, is as standard produced in length 195mm measured from the point making contact with the surface
of the tank to the bottom of the dipstick. The filler breathers TSV - TSAV are similar to the models TMDV and TMDAV but have smaller space requirements. They are used in
applications where a pressure needs to be maintained with the tank. The check valve will open when a pressure is reached of approx. .20 - .25 bar (3 -3.6 PSI) and will close reset
at similar pressure.

The check valve will allow air to vent out under the above conditions, but does not allow air to move back in, thus preventing dust particles or other forms of contamination
form the atmosphere to enter the oil. Extensively used in small oil tanks, gearboxes, gear reducers, torque multipliers and transmissions. The model TSAF has all the
characteristics of “TSAV” but is fitted with a polyurethane air filter instead of the check valve.

FILLER BREATHER

Dipstick and Check Valve

CODE F €

N16

TSAV-14 G1/4” 2.19

TSAV-38 G3/8” 2.30

TSAV-12 G1/2” 2.45

FILLER BREATHER

Dipstick and Filter

CODE F €

N16

TSAF-14 G1/4” 2.15

TSAF-38 G3/8” 2.23

TSAF-12 G1/2” 2.30

PRESS-FIT FILLER BREATHER

Filter

CODE AIRFLOW A B C D €

N16

TPF-18 18 36 23 17 20 1.93

TPF-20 20 36 24 17 19 2.17

TPF-26 26 41 28 17 21 2.45

TPF-30 30 47 33 17 21 2.99

Press-fit filler breathers, with easy grip vertical ribs. These filler breathers are not threaded, but fit snugly into a pre-drilled hole and seal by means of ‘O’ rings located
in the stem. Hole tolerances: - 0 + 0.1mm. These filler breathers are produced from thermoplastic polymide 66 which offers high mechanical resistance at both lower
and higher temperatures (100˚C (212 F) max.). Standard colour is black, red lid, with encased the UNI fill symbol and the text “OIL”. (TP - TPF). The model TPV is
additionally encased with the UNI Valve Symbol. Seals: 2 Oil resistant ‘O’ Rings, NBR 70 shore. The filler breather model TP/F has a large breathing capacity, and is
applied where a high volume of air change takes place, in example, hydraulic systems that utilise high ratio hydraulic cylinders. They are not recommended for usage
on mobile equipment, where strong movement of the oil tank is present.
