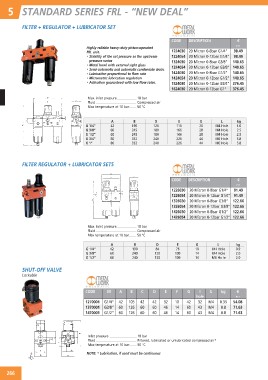

Page 272 - floMAX Catalogue 2016

5 STANDARD SERIES FRL - “NEW DEAL”

FILTER + REGULATOR + LUBRICATOR SET

CODE DESCRIPTION €

Highly reliable heavy-duty piston-operated P11
FRL unit.
• Stability of the set pressure as the upstream 1224030 20 Micron 0-8bar G1/4” 98.49
pressure varies
• Metal bowl with external sight glass 1224054 20 Micron 0-12bar G1/4” 98.49
• Semi-automatic and automatic condensate drain.
• Lubrication proportional to flow rate 1324030 20 Micron 0-8bar G3/8” 140.65
• Micrometric lubrication regulation
• Activation guaranteed with low flow rates. 1324054 20 Micron 0-12bar G3/8” 140.65

1424030 20 Micron 0-8bar G1/2” 140.65

1424054 20 Micron 0-12bar G1/2” 140.65

1524030 20 Micron 0-12bar G3/4” 376.45

1624030 20 Micron 0-12bar G1” 376.45

Max. inlet pressure 18 bar
Fluid Compressed air
Max temperature at 10 bar 50 °C

A B D E G L kg

G 1/4” 42 190 126 116 20 M4 Hole 1.0

G 3/8” 60 245 180 166 28 M4 Hole 2.5

G 1/2” 60 245 180 166 28 M4 Hole 2.5

G 3/4” 80 332 240 226 44 M6 Hole 5.8

G 1” 80 332 240 226 44 M6 Hole 5.8

FILTER REGULATOR + LUBRICATOR SETS

CODE DESCRIPTION €

P11

1226030 20 Micron 0-8bar G1/4” 91.49

1226054 20 Micron 0-12bar G1/4” 91.49

1326030 20 Micron 0-8bar G3/8” 122.66

1326054 20 Micron 0-12bar G3/8” 122.66

1426030 20 Micron 0-8bar G1/2” 122.66

1426054 20 Micron 0-12bar G1/2” 122.66

Max. inlet pressure 18 bar
Fluid Compressed air
Max temperature at 10 bar 50 °C

A B D E G L kg
G 1/4”
G 3/8” 42 190 84 76 10 M4 Hole 0.9
G 1/2”
60 240 120 109 14 M4 Hole 2.0

60 240 120 109 14 M6 Ho le 2.0

SHUT-OFF VALVE

Lockable

CODE M A B C D E F G I L kg €
hole P11

1270001 G1/4” 42 105 42 42 32 10 42 32 M4 0.35 54.08

1370001 G3/8” 60 126 60 60 46 14 60 43 M4 0.8 71.63

1470001 G1/2” 60 126 60 60 46 14 60 43 M4 0.8 71.63

Inlet pressure 18 bar
Fluid Filtered, lubricated or unlubricated compressed air*
Max temperature at 10 bar 50 °C

NOTE: * Lubrication, if used must be continuous
