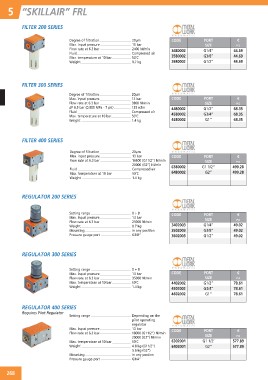

Page 274 - floMAX Catalogue 2016

5 “SKILLAIR” FRL 20µm CODE PORT €
13 bar
FILTER 200 SERIES 2400 NI/min SIZE P52
Compressed air
Degree of filtration 50˚C 3480002 G1/4” 44.69
Max. input pressure 0.7 kg
Flow rate at 6.3 bar 3580002 G3/8” 44.69
Fluid
Max. temperature at 10 bar 3680002 G1/2” 44.69
Weight

FILTER 300 SERIES

Degree of filtration 20µm CODE PORT €
Max. input pressure 13 bar
Flow rate at 6.3 bar 3800 NI/min SIZE P52
∆P 0.5 bar (0.005 MPa - 7 psi) 135 scfm
Fluid Compressed air 4480002 G1/2” 68.35
Max. temperature at 10 bar 50˚C
Weight 1.4 kg 4580002 G3/4” 68.35

4680002 G1” 68.35

FILTER 400 SERIES 20µm CODE PORT €
13 bar
Degree of filtration 16500 (G11/2”) NI/min SIZE P52
Max. input pressure 20000 (G2”) NI/min
Flow rate at 6.3 bar Compressed air 6380002 G1 1/2” 499.28
50˚C
Fluid 1.4 kg 6480002 G2” 499.28
Max. temperature at 10 bar
Weight

REGULATOR 200 SERIES

Setting range 0÷8 CODE PORT €
Max. input pressure 13 bar
Flow rate at 6.3 bar 25000 NI/min SIZE P52
Weight 0.7 kg
Mounting In any position 3402003 G1/4” 49.02
Pressure gauge port G1/8”
3502003 G3/8” 49.02
REGULATOR 300 SERIES
3602003 G1/2” 49.02

Setting range 0÷8 CODE PORT €
Max. input pressure 13 bar
Flow rate at 6.3 bar 35000 NI/min SIZE P52
Max. temperature at 10 bar 50˚C
Weight 1.4 kg 4402002 G1/2” 78.61

4502002 G3/4” 78.61

4602002 G1” 78.61

REGULATOR 400 SERIES
Requires Pilot Regulator Setting range
Depending on the

pilot operating

regulator

Max. input pressure 13 bar CODE PORT €

Flow rate at 6.3 bar 18000 (G11/2”) NI/min SIZE P52

20000 (G2”) NI/min 6302001 G1 1/2’ 577.89

Max. temperature at 10 bar 50˚C

Weight 4.8 kg (G11/2”) 6402001 G2” 577.89

5.6 kg (G2”)

Mounting In any postion

Pressure gauge port G1/4”

268
