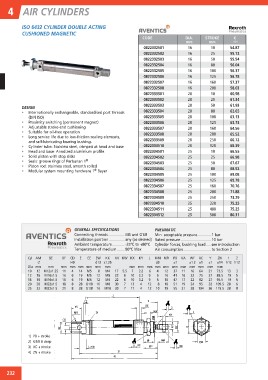

P. 238
4 AIR CYLINDERS CODE DIA. STROKE €
mm mm
ISO 6432 CYLINDER DOUBLE ACTING 0822332501 X01
CUSHIONED MAGNETIC 0822332502
0822332503 16 10 54.87
DESIGN 0822332504
• Internationally exchangeable, standardised port threads 0822332505 16 25 55.12
(DIN ISO) 0822332506
• Proximity switching (permanent magnet) 0822332507 16 50 55.54
• Adjustable stroke-end cushioning 0822332508
• Suitable for oil-free operation 0822333501 16 80 56.04
• Long service life due to low-friction sealing elements, 0822333502
and self-lubricating bearing bushing. 0822333503 16 100 56.37
• Cylinder tube: Stainless steel, crimped at head and base 0822333504
• Head and base: Anodized aluminium profile 0822333505 16 125 56.78
• Solid piston with stop disks 0822333506
• Seals: groove rings of Perbunan 1® 0822333507 16 160 57.37
• Piston rod: stainless steel, smooth rolled 0822333508
• Modular system mounting hardware 1® Bayer 0822333509 16 200 58.03
0822333510
0822334501 20 10 60.98
0822334502
0822334503 20 25 61.34
0822334504
0822334505 20 50 61.93
0822334506
0822334507 20 80 62.65
0822334508
0822334509 20 100 63.13
0822334510
0822334511 20 125 63.73
0822334512
20 160 64.56
20 200 65.52
20 250 66.72
20 320 68.39
25 10 66.55
25 25 66.98
25 50 67.67
25 80 68.52
25 100 69.08
25 125 69.78
25 160 70.76
25 200 71.88
25 250 73.29
25 320 75.25
25 400 75.25
25 500 80.31
GENERAL SPECIFICATIONS PNEUMATIC
Connecting threads
Installation position M5 and G1/8 Min. acceptable pressure 1 bar
Ambient temperature 10 bar
Temperature of medium any (as desired) Rated pressure see introduction
to Section 2
-25ºC to +80ºC Cylinder forces, buckling load
80ºC Max Air consumption
Cyl AM BE BF CD E EE EW KK KV KW KX KY L MM MR PB VA WF XC Y ZN 1 2
-2 H9 d13 x1.25 d9 ±1 ±1.2 ±1 ±1 ±14 h12 h12
Dia mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
10 12 M12x1.25 11 4 14 M5 8 M4 17 5.5 7 2.2 6 4 12 37 11 16 64 21 73.5 13 3
12 16 M16x1.5 16 6 19 M5 12 M8 22 6 10 3.2 9 6 16 41 16 22 75 27 88.5 19 5
16 16 M16x1.5 16 6 19 M5 12 M6 22 6 10 3.2 9 6 16 47 17 22 82 27 95.5 19 5
20 20 M22x1.5 18 8 28 G1/8 16 M8 30 7 13 4 12 8 18 51 19 24 95 32 109.5 28 6
25 22 M22x1.5 21 8 28 G1/8 16 M10 30 7 17 4 12 10 19 55 21 28 104 36 119.5 28 8
1) PB + stroke
2) G1/8 8 deep
3) XC + stroke
4) ZN + stroke
