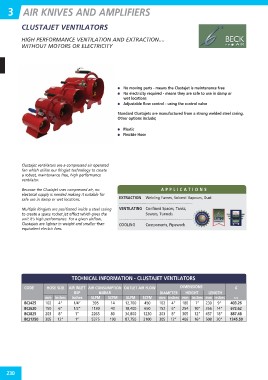

Page 236 - floMAX Catalogue 2016

3 AIR KNIVES AND AMPLIFIERS

CLUSTAJET VENTILATORS

HIGH PERFORMANCE VENTILATION AND EXTRACTION....
WITHOUT MOTORS OR ELECTRICITY

l No moving parts - means the Clustajet is maintenance free
l No electricity required - means they are safe to use in damp or
wet locations
l Adjustable flow control - using the control valve

Standard Clustajets are manufactured from a strong welded steel casing.
Other options include;

l Plastic
l Flexible Hose

Clustajet ventilators are a compressed air operated APPLICATIONS
fan which utilise our Ringjet technology to create EXTRACTION Welding Fumes, Solvent Vapours, Dust
a robust, maintenance free, high performance
ventilator. VENTILATING Confined Spaces, Tanks,
Sewers, Tunnels
Because the Clustajet uses compressed air, no
electrical supply is needed making it suitable for COOLING Components, Pipework
safe use in damp or wet locations.

Multiple Ringjets are positioned inside a steel casing
to create a space rocket jet effect which gives the
unit it’s high performance. For a given airflow,
Clustajets are lighter in weight and smaller than
equivalent electric fans.

TECHNICAL INFORMATION - CLUSTAJET VENTILATORS

CODE HOS E SIZE AIR INLET AIR C ONSUM PTION OUTLE T AIR F LOW DI MENSIO NS €

BSP @4BAR DIAMETER HEIGHT LENGTH

mm inches inches SLPM SCFM SLPM SCFM mm inches mm inches mm inches E26

BCJ425 102 4” 1/4” 395 14 12,700 450 102 4” 180 7” 230 9” 403.26

BCJ620 150 6” 1/2” 1130 40 18,400 650 152 6” 254 10” 356 14” 672.62

BCJ825 203 8” 1” 2265 80 34,800 1230 203 8” 305 12” 457 18” 887.48

BCJ1250 305 12” 1” 5375 190 87,750 3100 305 12” 406 16” 508 20” 1245.59
