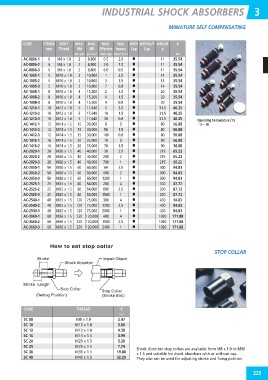

Page 231 - floMAX Catalogue 2016
P. 231
INDUSTRIAL SHOCK ABSORBERS 3
MINIATURE SELF COMPENSATING
CODE STROKE BODY MAX. MAX. MAX. MAX. WITH WITHOUT WEIGHT €
mm Thread NM NM Effective Impact Cap Cap g
per cycle per hour mass (kg) Speed (m/s) N18
AC-0806-1 6 M8 x 1.0 2 8,800 0.5 2.0 l 11 35.54
AC-0806-2 6 M8 x 1.0 2 8,800 2.0 1.0 l 11 35.54
AC-0806-3 6 M8 x 1.0 2 8,800 6.0 0.5 l 11 35.54
AC-1005-1 5 M10 x 1.0 3 10,800 1 3.0 l 14 35.54
AC-1005-2 5 M10 x 1.0 3 10,800 3 1.5 l 14 35.54
AC-1005-3 5 M10 x 1.0 3 10,800 7 0.8 l 14 35.54
AC-1008-1 8 M10 x 1.0 4 15,200 2 3.0 l 20 35.54
AC-1008-2 8 M10 x 1.0 4 15,200 4 1.5 l 20 35.54
AC-1008-3 8 M10 x 1.0 4 15,200 9 0.8 l 20 35.54
AC-1210-1 10 M12 x 1.0 5 17,640 5 3.0 l 31.5 46.25
AC-1210-2 10 M12 x 1.0 5 17,640 10 1.5 l 31.5 46.25
AC-1210-3 10 M12 x 1.0 5 17,640 30 0.8 l 31.5 46.25 Operating Temperature (˚C)
-10 ~ 80
AC-1412-1 12 M14 x 1.5 15 30,000 8 3 l 80 56.88
AC-1412-2 12 M14 x 1.5 15 30,000 50 1.5 l 80 56.88
AC-1412-3 12 M14 x 1.5 15 30,000 100 0.8 l 80 56.88
AC-1416-1 16 M14 x 1.5 20 35,000 10 3 l 90 56.88
AC-1416-2 16 M14 x 1.5 20 35,000 70 1.5 l 90 56.88
AC-2020-1 20 M20 x 1.5 40 40,000 30 3.5 l 215 65.22
AC-2020-2 20 M20 x 1.5 40 40,000 200 2 l 215 65.22
AC-2020-3 20 M20 x 1.5 40 40,000 700 1 l 215 65.22
AC-2050-1 50 M20 x 1.5 60 60,000 60 3.5 l 300 94.83
AC-2050-2 50 M20 x 1.5 60 60,000 400 2 l 300 94.83
AC-2050-3 50 M20 x 1.5 60 60,000 1200 1 l 300 94.83
AC-2525-1 25 M25 x 1.5 80 54,000 200 4 l 330 87.72
AC-2525-2 25 M25 x 1.5 80 54,000 800 2.5 l 330 87.72
AC-2525-3 25 M25 x 1.5 80 54,000 1500 1 l 330 87.72
AC-2540-1 40 M25 x 1.5 120 75,000 300 4 l 430 94.83
AC-2540-2 40 M25 x 1.5 120 75,000 1200 2.5 l 430 94.83
AC-2540-3 40 M25 x 1.5 120 75,000 2000 1 l 430 94.83
AC-3660-1 60 M36 x 1.5 250 120,000 400 4 l 1030 171.88
AC-3660-2 60 M36 x 1.5 250 120,000 1500 2.5 l 1030 171.88
AC-3660-3 60 M36 x 1.5 250 120,000 2400 1 l 1030 171.88
STOP COLLAR
CODE THREAD €
N18
SC 08 M8 x 1.0 2.47
SC 10 M10 x 1.0 3.00
SC 12 M12 x 1.0 4.38
SC 14 M14 x 1.5 3.99
SC 20 M20 x 1.5 5.30
SC 25 M25 x 1.5 7.74 Shock Absorber stop collars are available from M8 x 1.0 to M36
SC 36 M36 x 1.5 19.88 x 1.5 and suitable for shock absorbers with or without cap.
SC 40 M40 x 1.5 32.29 They also can be used for adjusting stroke and fixing position.
