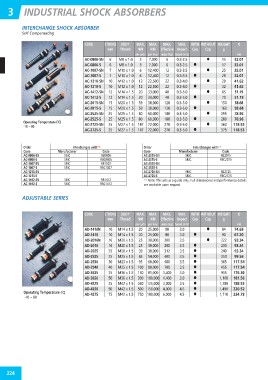

Page 230 - floMAX Catalogue 2016

3 INDUSTRIAL SHOCK ABSORBERS

INTERCHANGE SHOCK ABSORBER

Self Compensating

CODE STROKE BODY MAX. MAX. MAX. MAX. WITH WITHOUT WEIGHT €

mm Thread NM NM Effective Impact Cap Cap g

per cycle per hour mass (kg) Speed (m/s) N18

AC-0806-SN 6 M8 x 1.0 3 7,000 6 0.3-2.5 l 15 32.01

AC-0806-S 6 M8 x 1.0 3 7,000 6 0.3-2.5 l 17 32.01

AC-1007-SN 7 M10 x 1.0 6 12,400 12 0.3-3.5 l 25 32.01

AC-1007-S 7 M10 x 1.0 6 12,400 12 0.3-3.5 l 28 32.01

AC-1210-SN 10 M12 x 1.0 12 22,500 22 0.3-4.0 l 29 41.62

AC-1210-S 10 M12 x 1.0 12 22,500 22 0.3-4.0 l 32 41.62

AC-1412-SN 12 M14 x 1.5 20 33,000 40 0.3-5.0 l 65 51.19

AC-1412-S 12 M14 x 1.5 20 33,000 40 0.3-5.0 l 70 51.19

AC-2015-SN 15 M20 x 1.5 59 38,000 120 0.3-5.0 l 150 58.68

AC-2015-S 15 M20 x 1.5 59 38,000 120 0.3-5.0 l 160 58.68

AC-2525-SN 25 M25 x 1.5 80 60,000 180 0.3-5.0 l 295 78.96

Operating Temperature (˚C) AC-2525-S 25 M25 x 1.5 80 60,000 180 0.3-5.0 l 280 78.96
-10 ~ 80
AC-2725-SN 25 M27 x 1.5 147 72,000 270 0.3-5.0 l 360 118.53

AC-2725-S 25 M27 x 1.5 147 72,000 270 0.3-5.0 l 375 118.53

Order Interchanges with** Code Order Interchanges with**
Code Manufacturer Code Manufacturer Code
AC-0806-SN SMC RB0806 AC-2015-SN SMC RB2015
AC-0806-S SMC RBC0806 AC-2015-S SMC RBC2015
AC-1007-SN SMC RB1007 AC-2525-SN
AC-1007-S SMC RBC1007 AC-2525-S
AC-1210-SN AC-2725-SN SMC RB2725
AC-1210-S AC-2725-S SMC RBC2725
AC-1412-SN SMC RB1412
AC-1412-S SMC RBC1412 ** Note: This acts as a guide only. Full dimensional and performance details

are available upon request.

ADJUSTABLE SERIES

CODE STROKE BODY MAX. MAX. MAX. MAX. WITH WITHOUT WEIGHT €

mm Thread NM NM Effective Impact Cap Cap g

per cycle per hour mass (kg) Speed (m/s) N18

AD-1410N 10 M14 x 1.5 20 25,000 80 3.0 l 84 74.69

AD-1410 10 M14 x 1.5 20 25,000 80 3.0 l 90 67.20

AD-2016N 16 M20 x 1.5 25 30,000 200 3.5 l 222 93.34

AD-2016 16 M20 x 1.5 25 30,000 200 3.5 l 230 93.34

AD-2025 25 M20 x 1.5 39 30,000 312 3.5 l 240 93.34

AD-2525 25 M25 x 1.5 85 54,000 400 3.5 l 350 99.56

AD-2530 30 M25 x 1.5 95 60,000 480 3.5 l 365 117.54

AD-2540 40 M25 x 1.5 100 80,000 700 3.5 l 455 117.54

AD-3625 25 M36 x 1.5 150 81,000 1,400 3.0 l 955 176.30

AD-3650 50 M36 x 1.5 300 100,000 1,400 3.0 l 1,100 181.56

AD-4225 25 M42 x 1.5 260 125,000 3,000 3.5 l 1,280 188.53

Operating Temperature (˚C) AD-4250 50 M42 x 1.5 500 150,000 4,000 4.5 l 1,490 220.52
-10 ~ 80
AD-4275 75 M42 x 1.5 750 180,000 6,000 4.5 l 1,710 234.78
