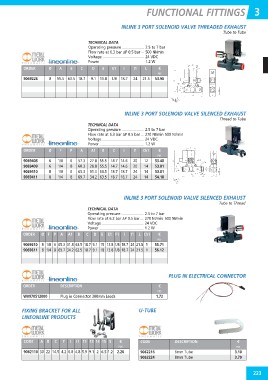

Page 229 - floMAX Catalogue 2016

FUNCTIONAL FITTINGS 3

INLINE 3 PORT SOLENOID VALVE THREADED EXHAUST

Tube to Tube

TECHNICAL DATA 2.5 to 7 bar
Operating pressure 500 NI/min
Flow rate at 6.3 bar ∆P 0.5 bar 24 VDC
Voltage 1.2 W
Power

ORDER Ø A B C D E E1 I I1 L €

P05

9069224 8 55.5 63.5 18.7 9.1 13.8 1/8 18.7 24 21.5 53.90

INLINE 3 PORT SOLENOID VALVE SILENCED EXHAUST

Thread to Tube

TECHNICAL DATA 2.5 to 7 bar
Operating pressure 270 NI/min 500 NI/min
Flow rate at 6.3 bar ∆P 0.5 bar 24 VDC
Voltage 1.2 W
Power

ORDER Ø F P A A1 B C I I1 Ch1 €

P05

9069408 6 1/8 6 57.3 27.8 55.5 14.7 14.6 20 12 53.40

9069409 6 1/4 8 60.3 28.8 55.5 14.7 14.6 20 14 53.81

9069410 8 1/8 6 65.3 31.3 63.5 18.7 18.7 24 14 53.81

9069411 8 1/4 8 69.7 34.2 63.5 18.7 18.7 24 14 54.18

INLINE 3 PORT SOLENOID VALVE SILENCED EXHAUST

Tube to Thread

TECHNICAL DATA 2.5 to 7 bar
Operating pressure 270 NI/min 500 NI/min
Flow rate at 6.3 bar ∆P 0.5 bar 24 VDC
Voltage 1.2 W
Power

ORDER Ø F P A A1 B C D E E1 F1 I I1 L Ch1 €
P05

9069610 8 1/8 6 65.3 31.8 63.5 18.7 9.1 15 13.8 1/8 18.7 24 21.5 1 55.71

9069611 8 1/4 8 69.7 34.2 63.5 18.7 9.1 18 13.8 1/8 18.7 24 21.5 1 56.12

ORDER DESCRIPTION PLUG IN ELECTRICAL CONNECTOR

€
P05
W0970512000 Plug in Connector 300mm Leads 1.72

FIXING BRACKET FOR ALL U-TUBE
LINEONLINE PRODUCTS

CODE A B C F I I1 12 13 14 15 S € CODE DESCRIPTION €
P05
P05
9062110 30 22 14.5 4.2 6.8 4.8 5.9 9.1 2 6.5 1.2 2.26
9062216 6mm Tube 3.10
3.79
9062224 8mm Tube
223
