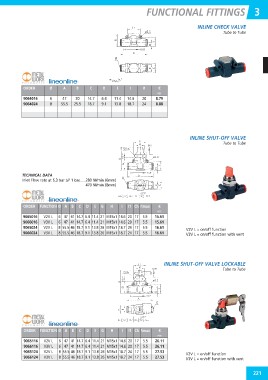

P. 227
FUNCTIONAL FITTINGS 3
INLINE CHECK VALVE
Tube to Tube
ORDER Ø A B C D E I I1 €
P05
9064016 6 47 20 14.7 6.4 11.4 14.6 20 8.79
9064024 8 55.5 25.5 18.7 9.1 13.8 18.7 24 8.88
INLINE SHUT-OFF VALVE
Tube to Tube
TECHNICAL DATA V2V L = on/off function
Inlet Flow rate at 6.3 bar ∆P 1 bar 280 NI/min (6mm) V3V L = on/off function with vent
470 NI/min (8mm)
ORDER FUNCTION Ø A B C D E G H I I1 Ch Nmax €
P05
9065016 V2V L 6 47 41 14.7 6.4 11.4 21 M15x1 14.6 20 17 5.5 15.61
9066016 V3V L 6 47 41 14.7 6.4 11.4 21 M15x1 14.6 20 17 5.5 15.61
9065024 V2V L 8 55.5 46 18.7 9.1 13.8 26 M15x1 18.7 24 17 5.5 16.61
9066024 V3V L 8 55.5 46 18.7 9.1 13.8 26 M15x1 18.7 24 17 5.5 16.61
INLINE SHUT-OFF VALVE LOCKABLE
Tube to Tube
ORDER FUNCTION Ø A B C D E G H I I1 Ch Nmax € V2V L = on/off function
P05 V3V L = on/off function with vent
9065116 V2V L 6 47 41 14.7 6.4 11.4 21 M15x1 14.6 20 17 5.5 26.11 221
9066116 V3V L 6 47 41 14.7 6.4 11.4 21 M15x1 14.6 20 17 5.5 26.11
9065124 V2V L 8 55.5 46 18.7 9.1 13.8 26 M15x1 18.7 24 17 5.5 27.53
9066124 V3V L 8 55.5 46 18.7 9.1 13.8 26 M15x1 18.7 24 17 5.5 27.53
