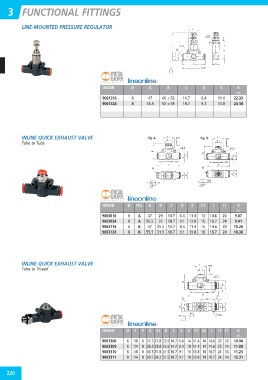

Page 226 - floMAX Catalogue 2016

3 FUNCTIONAL FITTINGS

LINE-MOUNTED PRESSURE REGULATOR

ORDER Ø A B C D E €

P05

9061316 6 47 46 ÷ 52 14.7 6.4 11.4 22.33

9061324 8 55.5 52 ÷ 58 18.7 9.1 13.8 24.18

INLINE QUICK EXHAUST VALVE Fig. A. Fig. B.

Tube to Tube

ORDER Ø FIG. A B C D E E1 I I1 €

P05

9063016 6 A 47 29 14.7 6.4 11.4 13 14.6 20 9.07

9063024 8 A 55.5 35 18.7 9.1 13.8 15 18.7 24 9.41

9063116 6 B 47 25.5 14.7 6.4 11.4 14 14.6 20 10.20

9063124 8 B 55.5 31.5 18.7 9.1 13.8 18 18.7 24 10.36

INLINE QUICK EXHAUST VALVE

Tube to Thread

ORDER Ø F P A A1 B C D E E1 E2 I I1 C1 €
P05

9063308 6 1/8 6 57.3 27.8 25.5 14.7 6.4 14 11.4 14 14.6 20 12 10.94
9063309 6 1/4 8 60.3 28.8 25.5 14.7 6.4 18 11.4 14 14.6 20 14 11.08
9063310 8 1/8 6 65.5 31.8 31.5 18.7 9.1 15 13.8 18 18.7 24 13 11.23
9063311 8 1/4 8 69.7 34.2 31.5 18.7 9.1 18 13.8 18 18.7 24 14 12.31

220
