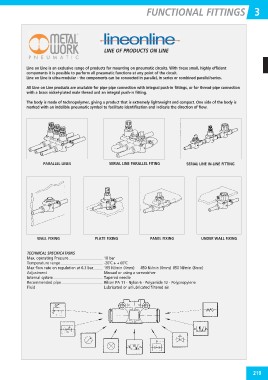

Page 225 - floMAX Catalogue 2016
P. 225
FUNCTIONAL FITTINGS 3
LINE OF PRODUCTS ON LINE
Line on Line is an exclusive range of products for mounting on pneumatic circuits. With these small, highly efficient
components it is possible to perform all pneumatic functions at any point of the circuit.
Line on Line is ultra-modular - the components can be connected in parallel, in series or combined parallel/series.
All Line on Line products are available for pipe-pipe connection with integral push-in fittings, or for thread-pipe connection
with a brass nickel-plated male thread and an integral push-in fitting.
The body is made of technopolymer, giving a product that is extremely lightweight and compact. One side of the body is
marked with an indelible pneumatic symbol to facilitate identification and indicate the direction of flow.
PARALLEL LINES SERIAL LINE PARALLEL FITING SERIAL LINE IN-LINE FITTING
WALL FIXING PLATE FIXING PANEL FIXING UNDER WALL FIXING
TECHNICAL SPECIFICATIONS
Max. operating Pressure 10 bar
Temperature range -20˚C ÷ + 60˚C
Max flow rate on regulation at 6.3 bar 155 NI/min (4mm) 450 NI/min (6mm) 850 NI/min (8mm)
Adjustment Manual or using a screwdriver
Internal system Tapered needle
Recommended pipe Rilson PA 11 - Nylon 6 - Polyamide 12 - Polypropylene
Fluid Lubricated or unlubricated filtered air
