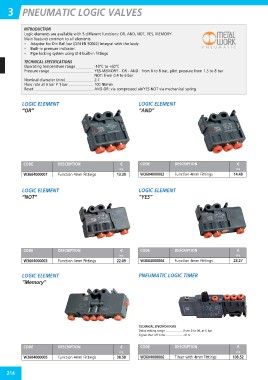

Page 220 - floMAX Catalogue 2016

3 PNEUMATIC LOGIC VALVES

INTRODUCTION
Logic elements are available with 5 different functions: OR, AND, NOT, YES, MEMORY.
Main features common to all elements:
• Adaptor for Din Rail bar (DIN EN 50022) integral with the body.
• Built-in pressure indicator.
• Pipe locking system using Ø 4 built-in fittings.

TECHNICAL SPECIFICATIONS -10°C to +60°C
Operating temperature range YES-MEMORY - OR - AND : from 0 to 8 bar, pilot pressure from 1.5 to 8 bar
Pressure range NOT: from 0.4 to 6 bar
2.7
Nominal diameter (mm) 100 NI/min
Flow rate at 6 bar P 1 bar AND-OR: via compressed air/YES-NOT via mechanical spring
Reset

LOGIC ELEMENT LOGIC ELEMENT
“OR” “AND”

CODE DESCRIPTION € CODE DESCRIPTION €

P06 P06
W3604000001 Function 4mm Fittings W3604000002 Function 4mm Fittings
13.30 14.48

LOGIC ELEMENT LOGIC ELEMENT
“NOT” “YES”

CODE DESCRIPTION € CODE DESCRIPTION €

W3604000003 Function 4mm Fittings P06 W3604000004 Function 4mm Fittings P06

LOGIC ELEMENT 22.09 PNEUMATIC LOGIC TIMER 23.27
“Memory”

TECHNICAL SPECIFICATIONS from 0 to 30, at 6 bar
Delay setting range <0.1s
Signal shut off time

CODE DESCRIPTION € CODE DESCRIPTION €

P06 P06
W3604000005 Function 4mm Fittings W3604000006 Timer with 4mm Fittings
38.58 108.52

214
