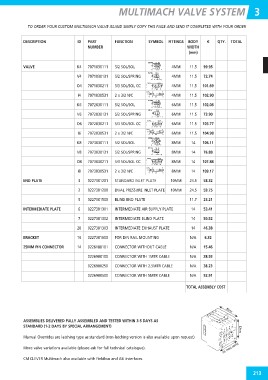

MULTIMACH VALVE SYSTEM 3

TO ORDER YOUR CUSTOM MULTIMACH VALVE ISLAND SIMPLY COPY THIS PAGE AND SEND IT COMPLETED WITH YOUR ORDER

DESCRIPTION ID PART FUNCTION £SYMBOL FITTINGS BODY € QTY. TOTAL

NUMBER WIDTH

(mm)

VALVE K4 7071030111 5/2 SOL/SOL 4MM 11.5 99.95
11.5 72.74
V4 7071030131 5/2 SOL/SPRING 4MM 11.5 101.69
11.5 102.90
O4 7071030211 5/3 SOL/SOL CC 4MM 11.5 102.08
11.5 73.90
I4 7071030531 2 x 3/2 N/C 4MM 11.5 103.77
11.5 104.98
K6 7072030111 5/2 SOL/SOL 6MM 14 106.11
14 76.88
V6 7072030131 5/2 SOL/SPRING 6MM 14 107.88
14 109.17
END PLATE O6 7072030211 5/3 SOL/SOL CC 6MM 24.5 58.32
24.5 59.75
I6 7072030531 2 x 3/2 N/C 6MM 11.7 23.21
INTERMEDIATE PLATE 14 53.41
K8 7073030111 5/2 SOL/SOL 8MM 14 50.52
14 46.38
BRACKET V8 7073030131 5/2 SOL/SPRING 8MM N/A 6.32
25MM PIN CONNECTOR N/A 15.46
O8 7073030211 5/3 SOL/SOL CC 8MM N/A 28.93
N/A 38.23
I8 7073030531 2 x 3/2 N/C 8MM N/A 52.91

3 0227301201 STANDARD INLET PLATE 10MM

2 0227301200 DUAL PRESSURE INLET PLATE 10MM

5 0227301500 BLIND END PLATE

6 0227301301 INTERMEDIATE AIR SUPPLY PLATE

7 0227301302 INTERMEDIATE BLIND PLATE

20 0227301303 INTERMEDIATE EXHAUST PLATE

16 0227301600 FOR DIN RAIL MOUNTING

14 0226180101 CONNECTOR WITHOUT CABLE

0226900100 CONNECTOR WITH 1MTR CABLE

0226900250 CONNECTOR WITH 2.5MTR CABLE

0226900500 CONNECTOR WITH 5MTR CABLE

TOTAL ASSEMBLY COST

ASSEMBLIES DELIVERED FULLY ASSEMBLED AND TESTED WITHIN 3-5 DAYS AS 86mn87mm
STANDARD (1-2 DAYS BY SPECIAL ARRANGEMENT)
SEE TABLE ABOVE
Manual Overrides are latching type as standard (non-latching version is also available upon request)
213
More valve variations available (please ask for full technical catalogue).

CM CLEVER Multimach also available with Fieldbus and ASi interfaces.
