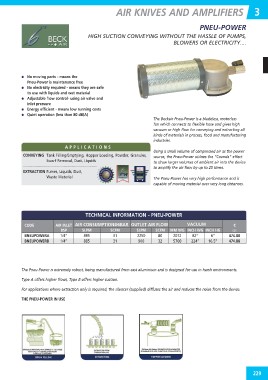

Page 235 - floMAX Catalogue 2016

AIR KNIVES AND AMPLIFIERS 3

PNEU-POWER

HIGH SUCTION CONVEYING WITHOUT THE HASSLE OF PUMPS,
BLOWERS OR ELECTRICITY....

l No moving parts - means the The Beckair Pneu-Power is a bladeless, motorless
Pneu-Power is maintenance free fan which connects to flexible hose and gives high
l No electricity required - means they are safe vacuum or high flow for conveying and extracting all
to use with liquids and wet material kinds of materials in process, food and manufacturing
l Adjustable flow control- using air valve and industries.
inlet pressure
l Energy efficient - means low running costs Using a small volume of compressed air as the power
l Quiet operation (less than 80 dB(A) source, the Pneu-Power utilises the “Coanda” effect
to draw larger volumes of ambient air into the device
APPLICATIONS to amplify the air flow by up to 25 times.
CONVEYING Tank Filling/Emptying, Hopper Loading, Powder, Granules,
Swarf Removal, Dust, Liquids The Pneu-Power has very high performance and is
capable of moving material over very long distances.
EXTRACTION Fumes, Liquids, Dust,
Waste Material

TECHNICAL INFORMATION - PNEU-POWER

CODE AIR INLET AIR CON SUMPTI ON@6BA R OUTLE T AIR FLO W VACU UM €

BSP SLPM SCFM SLPM SCFM MM WG INCH WG INCH HG E26

BNEUPOWERA 1/4” 885 31 2250 80 2072 82” 6” 474.88
474.88
BNEUPOWERB 1/4” 885 31 900 32 5700 224” 16.5”

The Pneu-Power is extremely robust, being manufactured from cast aluminium and is designed for use in harsh environments.
Type A offers higher flows, Type B offers higher suction.
For applications where extraction only is required, the silencer (supplied) diffuses the air and reduces the noise from the device.
THE PNEU-POWER IN USE

229
